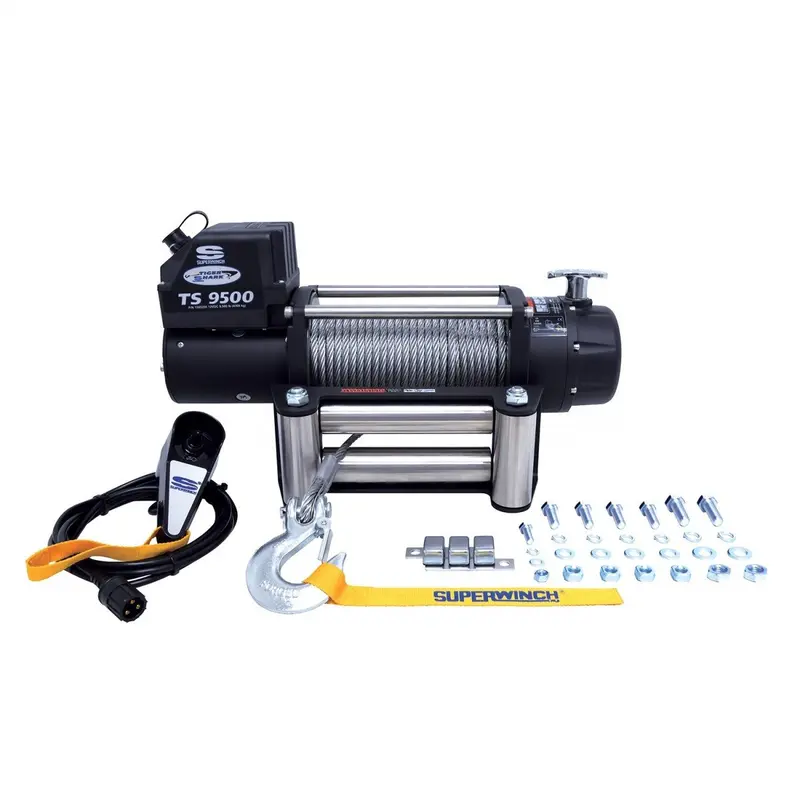

Superwinch 9500 LBS 12V DC 11/32in x 95ft Steel Rope Tiger Shark 9500 Winch
One of Superwinch’s most popular winches, the Tiger Shark 9500 Winch comes standard with an automatic load holding brake, better drums (thicker, fabricated steel), and stainless steel hardware and tie bars. Dollar for dollar, there’s no better winch than the Superwinch Tiger Shark.
Features:
- 12V DC 9,500 lbs rated line pull
- 5.2 HP motor
- 3-Stage planetary gearing with 218:1 ratio
- Weather sealed solenoid
- Ergonomic pull and turn freespool
- 21/64 in x 95 ft steel wire rope
- Automatic load holding brake design
- Heavy-duty, clevis pinned, latched hook
- Stainless steel 4-way roller fairlead
- Rugged handheld remote control
- Stainless steel tiebars
Instructions:
- Download Owner Guide
- https://www.youtube.com/embed/sSOzPix700k
Specifications:
| Brake | Mechanical, Automatic Load Holding |
| Clutch | Pull and Turn, Ergonomic |
| Dimensions | 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H) |
| Drum Diameter | 2.5in (63.5mm) |
| Drum Length | 9.0in (228.6mm) |
| Fairlead | Heavy Duty Stainless Steel 4-way Roller |
| Gear Ratio | 218:1 |
| Gearing | 3-Stage Planetary |
| Height | 0 |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Installed Weight | 90 lbs (41kg) |
| length | 0 |
| Line Pull, 0 lbs | 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
| Line Pull, 9,500 lbs | 340 Amps Motor Draw/4 FPM (1.2 MPM) Line Speed |
| Motor | Sealed 5.2 HP Series Wound |
| Mounting Bolt Pattern | 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm) |
| Rated Line Pull | 9,500 lbs (4309.1 kg) |
| Remote | Sealed Hand-held with 12ft cord |
| Rope | Steel Wire 21/64in x 95ft (8.3mm x 29m) |
| Solenoid | Sealed Solenoid, Circuit Breaker Protected |
| Warranty | Limited Lifetime Mechanical, 7 Year Limited Electrical |
| Weight | 0 |
| Width | 0 |
