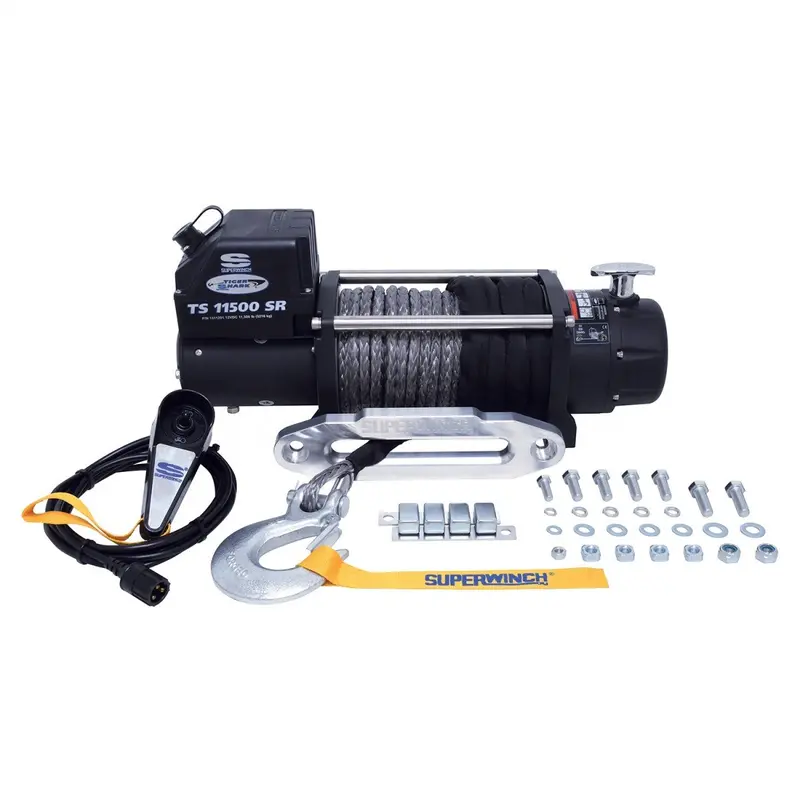

Superwinch 11500 LBS 12V DC 3/8in x 80ft Synthetic Rope Tiger Shark 11500 Winch
One of Superwinch’s most popular winches, the Tiger Shark 11500SR is the benchmark for performance winching without breaking the bank. From powerful motors, to strong gears, to highly durable stainless steel parts, the Tiger Shark 11500SR stands out from the competition. It is easy to see why the Tiger Shark remains one of Superwinch’s most popular winches, year after year.
Features:
- 12V DC 11,500 lbs rated line pull
- 5.8 HP motor
- 3-Stage planetary gearing with 218:1 ratio
- Weather sealed solenoid to reduce damage from the elements
- Ergonomic pull and turn freespool
- 3/8 in x 80 ft synthetic rope
- Automatic load holding brake design
- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead
- Rugged handheld remote control
Instructions:
- Download Owner Guide
- https://www.youtube.com/embed/sSOzPix700k
Specifications:
| Brake | Mechanical, Automatic Load Holding |
| Clutch | Pull and Turn, Ergonomic |
| Dimensions | 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H) |
| Drum Diameter | 2.5in (63.5mm) |
| Drum Length | 9.0in (228.6mm) |
| Fairlead | Anodized Aluminum Hawse |
| Gear Ratio | 218:1 |
| Gearing | 3-Stage Planetary |
| Height | 0 |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Installed Weight | 63 lbs (28.6 kg) |
| Length | 0 |
| Line Pull, 0 lbs | 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
| Line Pull, 11,500 lbs | 410 Amps Motor Draw/2 FPM (0.6 MPM) Line Speed |
| Motor | Sealed 6.0 HP Series Wound |
| Mounting Bolt Pattern | 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm) |
| Rated Line Pull | 11,500 lbs (5216.3 kg) |
| Remote | Sealed Hand-held with 12ft cord |
| Rope | Synthetic 3/8in x 80ft (9.5mm x 24.4m) |
| Solenoid | Sealed Solenoid, Circuit Breaker Protected |
| Warranty | Limited Lifetime Mechanical, 7 Year Limited Electrical |
| Weight | 0 |
| Width | 0 |
