Description

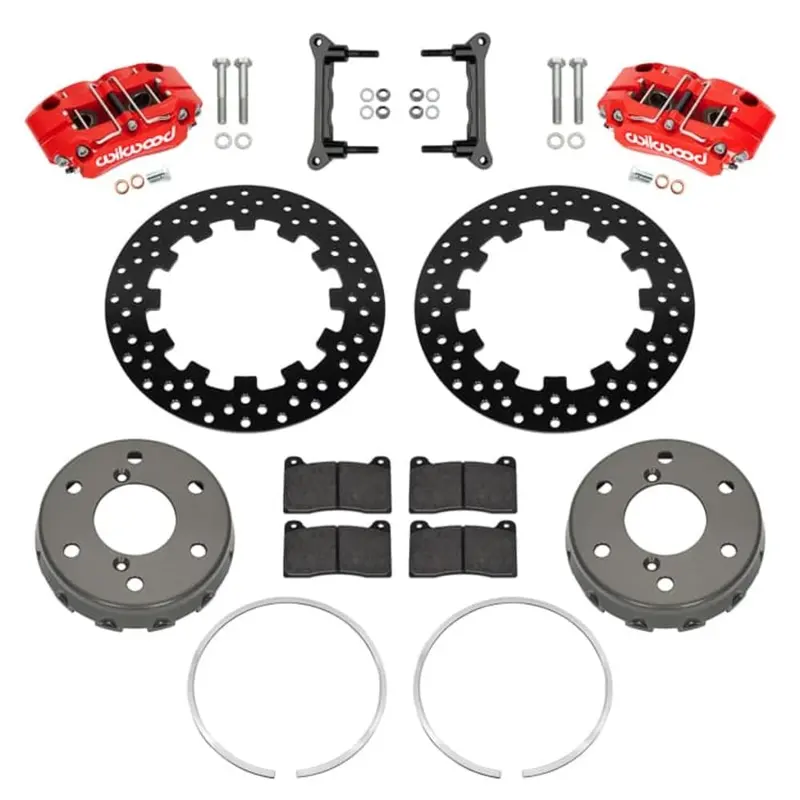

Wilwood Can-Am Maverick R NDPR Rear UTV Drilled Steel Brake Kit – Red
NDPR Rear UTV Brake Kit: Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.
Installation Instructions:
- Rear UTV Drilled Steel Brake Kit
Notes:
- Brake Kits are designed to fit OE Factory Spindles.
- Brake Kit may fit other vehicles,
- This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Fitment:
| Vehicle Make |
Vehicle Models |
| Can-Am |
Can-Am Maverick R 2024 Base |
| Can-Am |
Can-Am Maverick R X 2024 Base |
| Can-Am |
Can-Am Maverick R X RS 2024 Base |
| Can-Am |
Can-Am Maverick R X RS Smart Shox 2024 Base |
Specifications:
| Kit Summary |
| Rear End Axle: |
OEM |
| Axle Offset: |
0.00 |
| Mount Type: |
Radial |
| Caliper Type: |
4 – Red Powder Coat |
| Rotor Diameter: |
11.60 |
| Min Wheel Diameter Req’d*: |
14 |
Kit Components & Specifications:
| Calipers |
| Type: |
NDPR |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
4 |
| Piston 1 Bore (in): |
1.12 |
| Piston 2 Bore (in): |
1.12 |
| Piston Area (In²): |
1.98 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7812 |
| Brake Pad Area (In²): |
6.36 |
| Brake Pad Volume (In³): |
2.1 |
| Pad Compound: |
BP-20 |
 |
| Rotors |
| Type: |
Drilled Steel Rotor |
| Style: |
Drilled |
| Surface Finish: |
Black Electro Coat |
| Material: |
Steel |
| Outside Diameter (in): |
11.60 |
| Width (in): |
0.25 |
| Vane Count: |
Solid |
| Design Type: |
Solid |
| Bedded: |
No |
| Dynamically Balanced: |
No |
 |
| Rotor Hats |
| Type: |
Big Brake Dynamic Lug
Drive – Flared Bell |
| Material: |
Aluminum |
| Finish Color: |
Type III Anodize |
| Hat Offset Dimension (in): |
1.210 |
| Bolt Circle 1: |
6 x 5.50 |
Bolt Circle 2:
|
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
0.590 |
| Stud Diameter – BC 2: |
0.000 |
| Stud Diameter – BC 3: |
0.000 |
 |
| Hubs |
| Type: |
|
| Material: |
|
| Finish Color: |
|
| Bolt Circle 1: |
|
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
|
| Stud Diameter – BC 2: |
|
| Stud Diameter – BC 3: |
|
