Triple R Lightning Can-Am Maverick R Hood Mount Kit

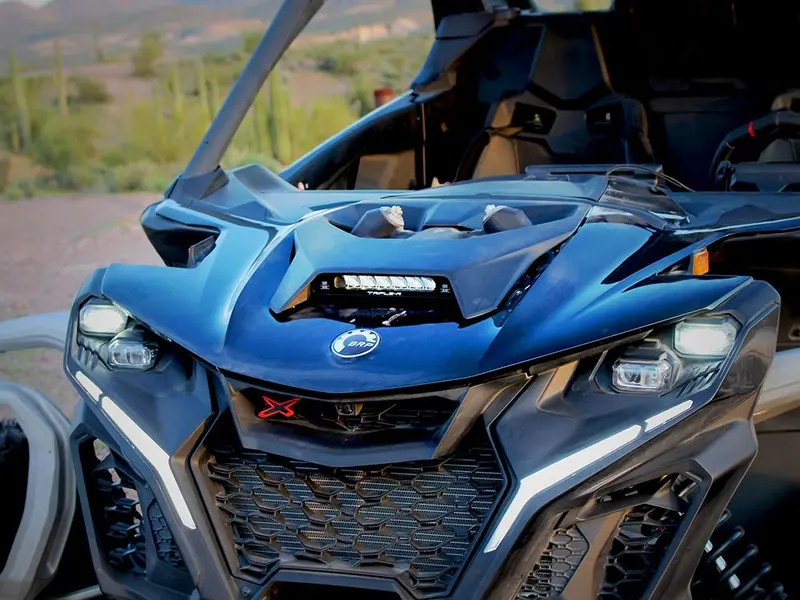

Designed and manufactured by one the leading suppliers of metal works parts for the side-by-side market based in the US, Triple-R Lights is delighted to offer the Can-Am Maverick R Hood Mount Kit. Compatible with our Linear-6 high performance LED lights, the kit facilitates the installation of the Linear-6 in the hood scoop for a stealth install that comes alive at night! The Linear-6 is available in Elite, Elite Yellow or Elite+ grade which boasts white and yellow LEDs to be used independently or in combination – perfect when navigating tricky off-road conditions.

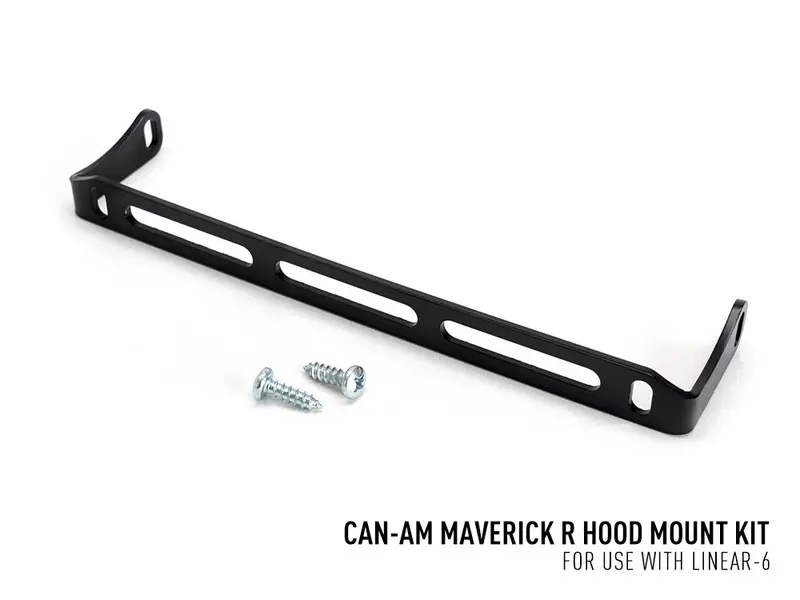

The mounting bracket itself is made from 3mm mild steel, with satin black powder coat, and supplied complete with fixtures. The mounts locate into original fixing locations on the Maverick R’s hood, resulting in a clean, robust install guaranteed to last and impress.
Features:
- Produced from 3mm mild steel with satin black powder coat finish
- Supplied with stainless steel fasteners
- Locates in original fixing locations on the Can-Am Maverick R
- Designed for Linear-6 high performance LED lights
- Designed & manufactured in the USA
Technical Specifications:
|
Linear-6 |
Linear-6 Elite | Linear-6 Elite+ (Boost / Low Output Mode) |
|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hours |
| Weight | 1.1 lbs | 1.1 lbs | 1.1 lbs |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 4,320 Lm | 4050 Lm | 5100 / 2500 Lm |
| Total Driver ‘FOV’ Flux † | 2,839 Lm | 2884 Lm | 3645 / 1822 Lm |
| Colour Temperature | PC Yellow | 5000K | 5000K |
| Number of High Output LEDs | 12 | 12 | 12 |
| Power Consumption | 42 Watts | 42 Watts | 48 W / 24 W |
| Current Draw (at 14.4V) | 2.9 Amps | 2.9 Amps | 3.6 A / 1.8 A |

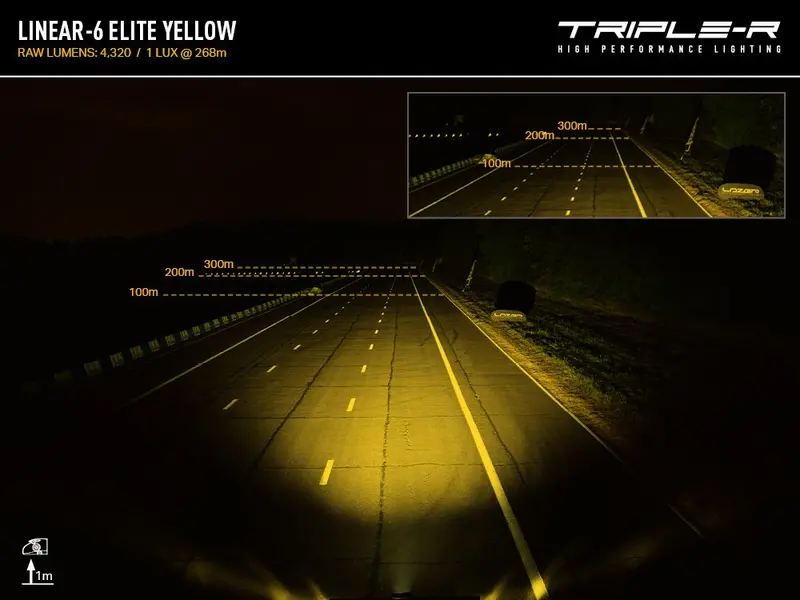

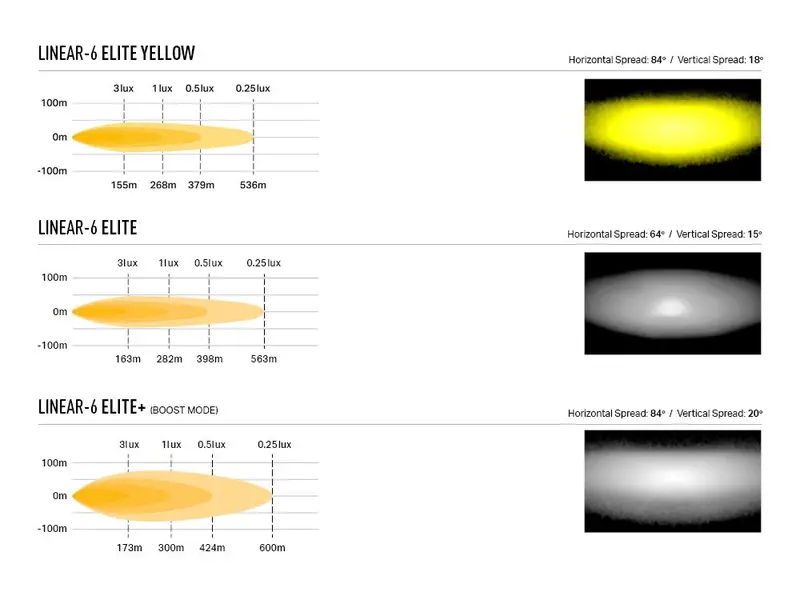

| PHOTOMETRIC DATA | |||
| Horizontal Beam Angle | 80˚ | 64o | 84o |
| 0.25 lx Line | 536m | 563 m | 600m / 424m |
| 0.5 lx Line | 379m | 398 m | 424m /300m |
| 1 lx Line | 268m | 282 m | 300m / 212m |
| 3 lx Line | 155m | 163 m | 173m / 122m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What’s Included:
- x1 Hood Mount U-Bracket
- x2 Fasteners
Instructions:
- CAN-AM Maverick R – Hood Mount Kit – Fitting Instructions
- Linear-6 Elite Yellow – Sales Information Card
- Linear-6 Elite – Sales Information Card
- Linear-6-Elite+ – Product Information Card
