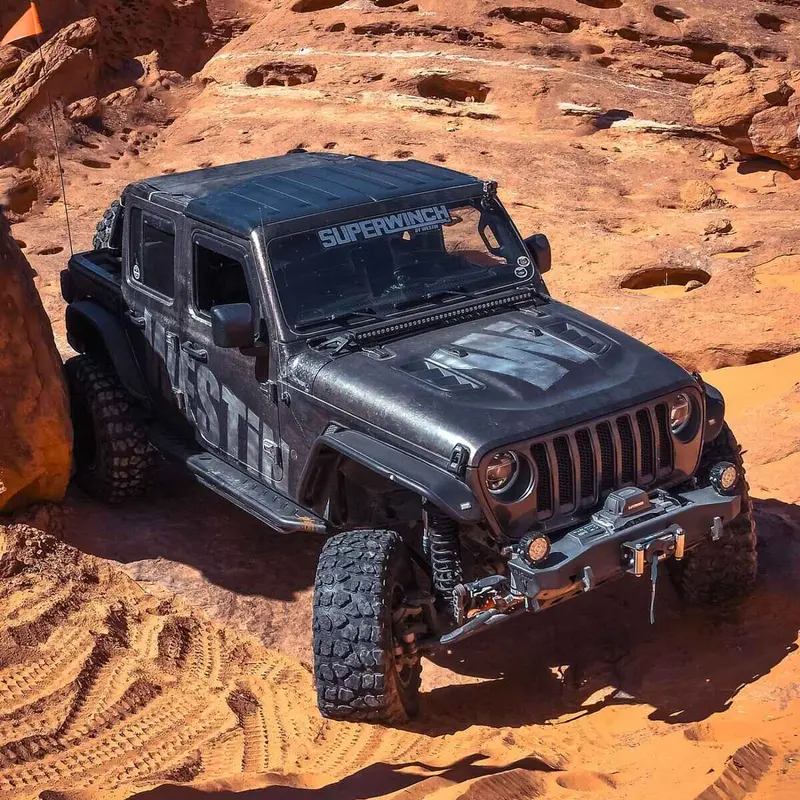

Superwinch 12000 LBS 12V DC 3/8in x 85ft Wire Rope SX 12000 Winch – Graphite
The SX12 winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter wire rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000 wire rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.
Features:
- 12V DC 12,000 lbs rated line pull
- 6.0 HP sealed motor
- Relocatable die-cast aluminum control box
- 12′ handheld wired remote features flashight with rechargeable lithium ION battery
- Pull-and turn clutch handle
- 3-stage planetary gearing with 231:1 ratio
- Patented drumlight
- Wire rope measures 3/8” x 85′
- Drum diameter measures 2.5″
- Heavy duty clevis winch hook
- Stainless steel 4-way roller fairlead
- 100% full load holding automatic mechanical brake
Instructions:
- Download Owner Guide
- https://www.youtube.com/embed/kywm-fp1-Lo
- https://www.youtube.com/embed/GR2w-Cbmzfg
- https://www.youtube.com/embed/Hxo0wVhPoLE
Specifications:
| Brake | Automatic, 100% Load Holding Mechanical |
| Clutch | Pull and Turn, Ergonomic Free Spooling |
| Dimensions | 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H) |
| Drum Diameter | 2.5in (64mm) |
| Drum Length | 8.75in (223mm) |
| Fairlead | Heavy Duty Stainless Steel 4-way Roller |
| Gear Ratio | 231:1 |
| Gearing | 3-Stage Planetary |
| Height | 0 |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Length | 0 |
| Line Pull, 0 lbs | 68 Amps Motor Draw/23.4 FPM (7.13 MPM) Line Speed |
| Line Pull, 10,000 lbs | 379 Amps Motor Draw/3.7 FPM (1.13 MPM) Line Speed |
| Motor | Sealed 6.0 HP Series Wound |
| Mounting Bolt Pattern | 10in x 4.5in (254mm x 114.3mm) |
| Rated Line Pull | 12,000 lbs (5443.1 kg) |
| Remote | Sealed Ergonomic Hand-held with 12ft Coiled Cord |
| Rope | Steel Wire 3/8in x 85ft (9.5mm x 25.9m) |
| Solenoid | Sealed Solenoid, relocatable |
| Warranty | Limited Lifetime Mechanical, 7 Year Limited Electrical |
| Weight | 0 |
| Width | 0 |
