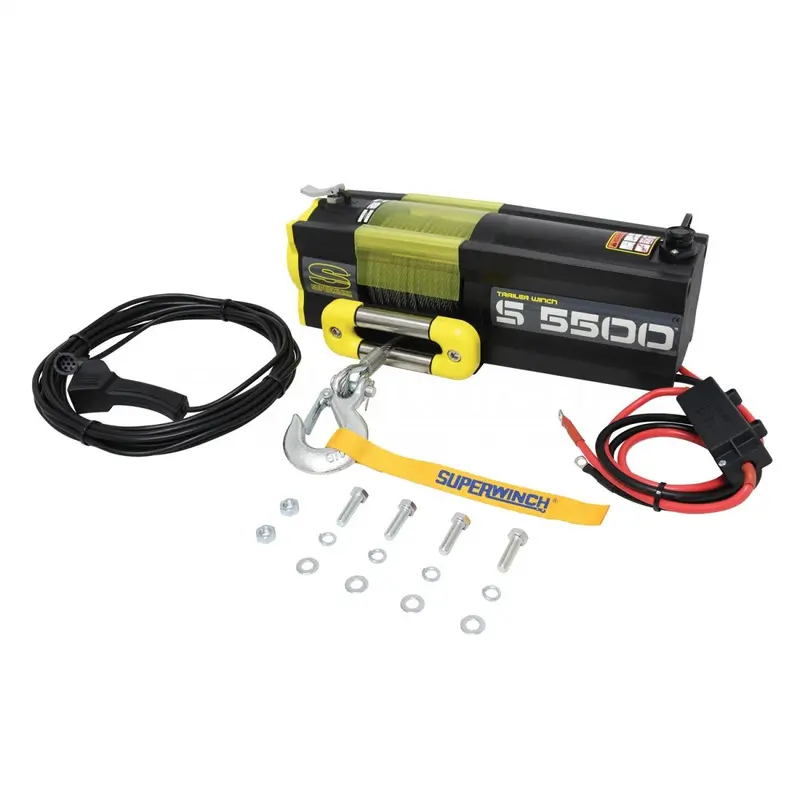

Superwinch 5500 LBS 12V DC 1/4in x 60ft Synthetic Rope S5500 Winch
The S5500SR Winch continues Superwinch’s dominance as the leader in trailer-specific winching. The Superwinch S5500SR easily pulls loads up to 5,500 lbs, powered by a stout 3.6 HP permanent-magnet motor and an all-steel 3-stage planetary gearbox. The S5500SR includes a safety-tinted protective cover for operator safety, and to protect the cable and drum. The machined aluminum free-spool lever can also be easily operated by foot.
Features:
- 12V DC 5,500 lbs rated line pull
- 3.6 HP permanent magnet motor provides dynamic braking
- 3-Stage planetary gearing with 159:1 ratio
- Sealed solenoid
- Lever style freespool allows hand or foot operation
- Steel cut gears for better engagement and longevity
- 1/4 in x 40 ft synthetic rope
- Automatic load holding brake
- Stainless steel 2-way roller fairlead
Instructions:
- Download Owner Guide
- https://www.youtube.com/embed/jxirTdXnizo
Specifications:
| Brake | Mechanical, Automatic |
| Clutch | N/A |
| Dimensions | N/A |
| Drum Diameter | N/A |
| Drum Length | N/A |
| Fairlead | 2-way Roller/Hawse hybrid |
| Gear Ratio | 185:1 |
| Gearing | 3-Stage Planetary |
| Height | 0 |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Installed Weight | 92 lbs (42 kg) |
| Length | 0 |
| Line Pull, 0 lbs | 80 Amps Motor Draw/19 FPM (5.8 MPM) Line Speed |
| Line Pull, 5,500 lbs | 410 Amps Motor Draw/2 FPM (0.6MPM) Line Speed |
| Motor | 3.6 HP Permanent Magnet |
| Mounting Bolt Pattern | N/A |
| Rated Line Pull | 5,500 lbs (2494.8 kg) |
| Remote | 30.5 handheld |
| Rope | Synthetic 3/8in x 90ft (9.5mm x 27.43m) |
| Solenoid | Sealed S3 Solenoid |
| Warranty | 2 Year Limited |
| Weight | 0 |
| Width | 0 |
