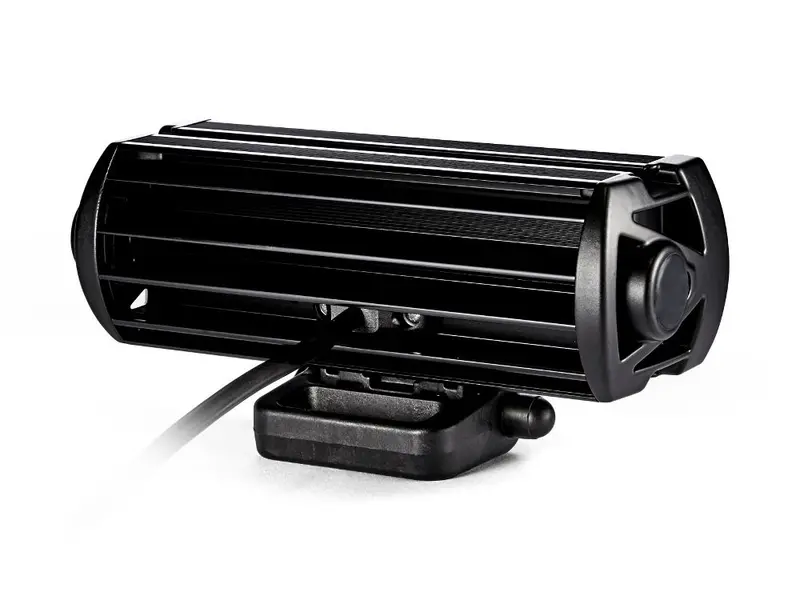

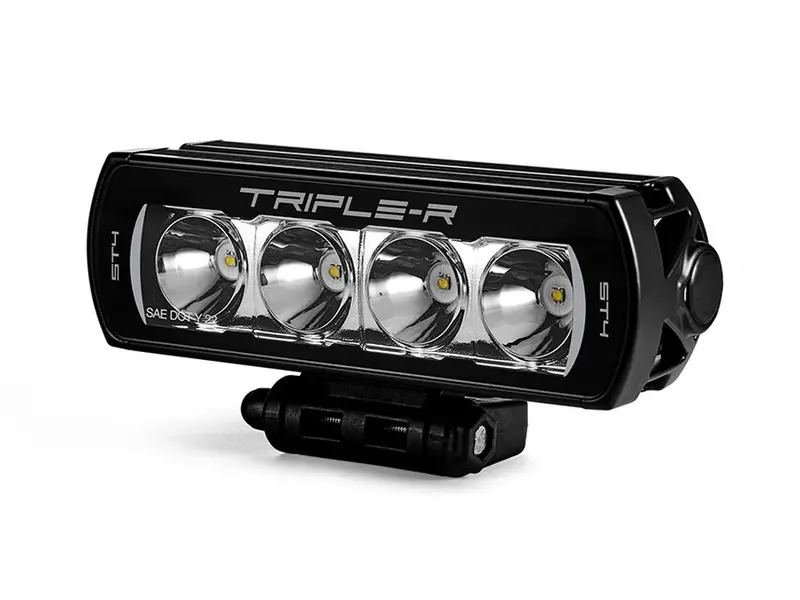

Triple R Lighting ST4 Evolution
The ST4 Evolution is a hugely versatile LED light bar which at 8” in length delivers incredible lighting performance which belies its diminutive size. High-density 11W LEDs are carefully selected for their high ‘bin’ rating, and deliver 4,136 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallized reflectors, harness the light output into a flood beam pattern optimized for both on and off-road use.
Performance aside, the ST4 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).
Features:
- 4x high density 11W LEDs (premium ‘bin’)
- Seamless, low profile design facilitates installation
- Dynamic drive modulation optimises light output to preserve longevity of the LEDs
- Ultra-reflective optics deliver ‘flood’ beam pattern
- CAE optimized heatsink
- E-coat pre-treatment provides maximum corrosion resistance
- 5 Year Warranty
- ‘Unbreakable’ polycarbonate lens with lifetime guarantee
- IP68K rating
- Comes as standard with 30cm cable, including pre-wired male & female connectors.
- Made in UK
Technical Specifications:
Based on: 1x ST4 Evolution LED Lightbar.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1.5 lbs |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 4136 Lm |
| Total Driver ‘FOV’ Flux † | 2490 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 4 |
| Power Consumption | 47 Watts |
| Current Draw (at 14.4V) | 3.3 Amps |
| CERTIFICATION | |
| DOT Compliant | Yes |
| SAE Compliant | Yes |
| DIMENSIONS | |
| Width | 8” |
| Depth | 2.7” |
| Height | 2.5” |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 40° |
| 0.25 lx Line | 555 metres |
| 0.5 lx Line | 393 metres |
| 1 lx Line | 278 metres |
| 3 lx Line | 160 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What’s Included:
- 1x ST4 Evolution LED Light
- 1x Centre Mount (1114K)
- 1x Fitting Instructions
Instructions:
- ST4 Evolution – Sales Information Card (3.86 MB)
- Lamp Instructions – Triple-R-Lights (2.03 MB)
- UT50 Beacon Instructions (107.03 KB)
