Description

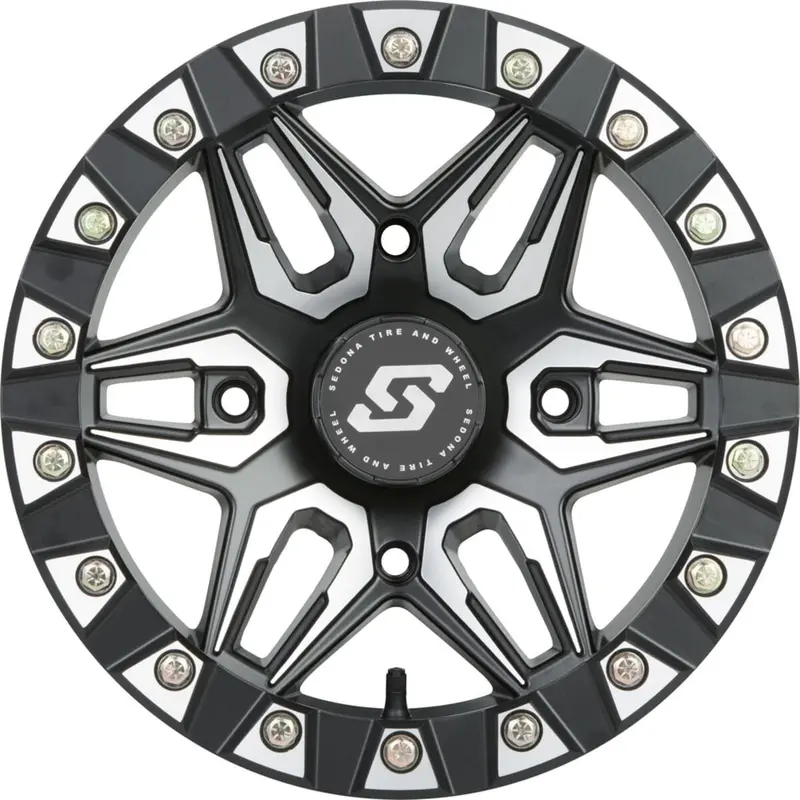

Sedona Split 6 Beadlock Wheel – Black/Machined
The Split 6 is our newest true beadlock wheel to hit the Sedona product line. From racing to recreation this wheel is built with performance and value in mind. Keep your tires Locked-N-Loaded with the Sedona Split Six Beadlock.
- 6 spoke mesh style design with stepped Beadlock Ring
- Constructed out of heavy duty A356 aluminum, 6061 beadlock ring
- USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
- Engineered to be one of the strongest wheels available
- Available in both Satin Black/Machined and Bronze finishes
- Includes a satin black snap-in cap with embossed Sedona S Chrome logo
- Race proven strength in BITD series, The Mint 400 and many others.
- Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
- May require aftermarket lug nuts
Specifications:
| Part | Wheel Size | Pattern | True Offset | Industry Offset | Finish | Color |
|---|---|---|---|---|---|---|
| 570-1240 | 14 In. X 7 In. | 4/110 | +10 MM | 5+2 | Satin | Black Machined |
| 570-1246 | 14 In. X 10 In. | 4/110 | 0 MM | 5+5 | Satin | Black Machined |
| 570-1244 | 14 In. X 7 In. | 4/110 | +30 MM | 6+1 | Satin | Black Machined |
| 570-1241 | 14 In. X 7 In. | 4/115 | +10 MM | 5+2 | Satin | Black Machined |
| 570-1247 | 14 In. X 10 In. | 4/115 | 0 MM | 5+5 | Satin | Black Machined |
| 570-1350 | 15 In. X 6 In. | 4/137 | +40 MM | 5+1 | Satin | Black Machined |
| 570-1242 | 14 In. X 7 In. | 4/137 | +10 MM | 5+2 | Satin | Black Machined |
| 570-1248 | 14 In. X 10 In. | 4/137 | 0 MM | 5+5 | Satin | Black Machined |
| 570-1243 | 14 In. X 7 In. | 4/156 | +5 MM | 4+3 | Satin | Black Machined |
| 570-1351 | 15 In. X 6 In. | 4/156 | +40 MM | 5+1 | Satin | Black Machined |
| 570-1249 | 14 In. X 10 In. | 4/156 | 0 MM | 5+5 | Satin | Black Machined |
| 570-1245 | 14 In. X 7 In. | 4/156 | +30 MM | 6+1 | Satin | Black Machined |
