PCI Race Radios Air Boost Complete Suspension Bundle

Description

PCI Race Radios Race Air Boost Package

Keep your visor from fogging up and the dust out of your helmet! Perfect fit for your SxS, short course ripper, or full blown spec truck. Complete with wiring harness, rocker switch and hoses this is your one-stop shop for clean, fresh air in your helmet! The RaceAir billet housing includes specific roll bar sizes available to fit your vehicle. You also have the option of the remote speed control for your dash to keep the power right at your fingertips.

Cleaning Instructions:

• Step 1: Tap the filter to remove any loose dirt. Applying 409 or simple green works great.   Let stand for 10–15 minutes and allow the cleaner to break down the dirt.
• Step 2: Rinse with tap water or a garden hose from the inside out. Do not use high pressure.
• Step 3: Let it air dry out of direct sunlight. Do not apply heat. Wait until the filter is completely dry.

Features:

• Variable Speed Control
• Option of 2 or 4 air outlets.
• Optional remote control with 10ft cable
• Lightweight, durable billet housing
• Brushless, DC Motor
• Option of Panel Mount Plate, Maverick R bracket, RZR Pro R bracket, or Roll Bar mounts included for 1.25″/2″, 1.5″/1.75″ or 1.85″/2.5″. Rotate the bracket 90 degrees to change between the two bar sizes
• Can be mounted in any direction. (Vertical, Horizontal, or Upside Down)

Specifcations:

• 3200-3600 CFM depending on the length of hose
• 2.8 – 4 amps (5amp fuse recommended)
• 2.1 lbs with bracket and controller
• 2-year manufacturer defect warranty

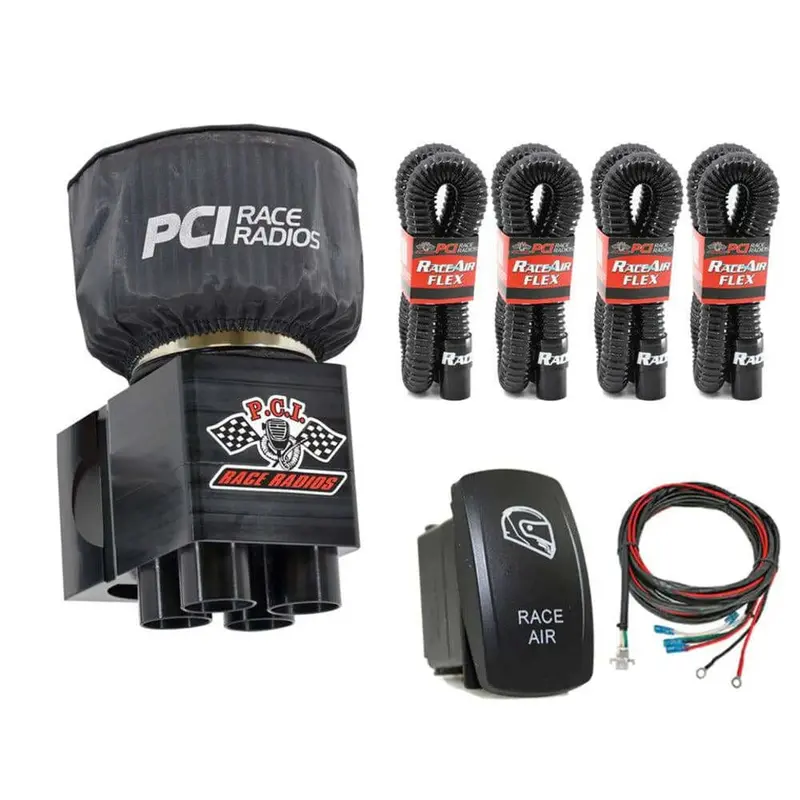

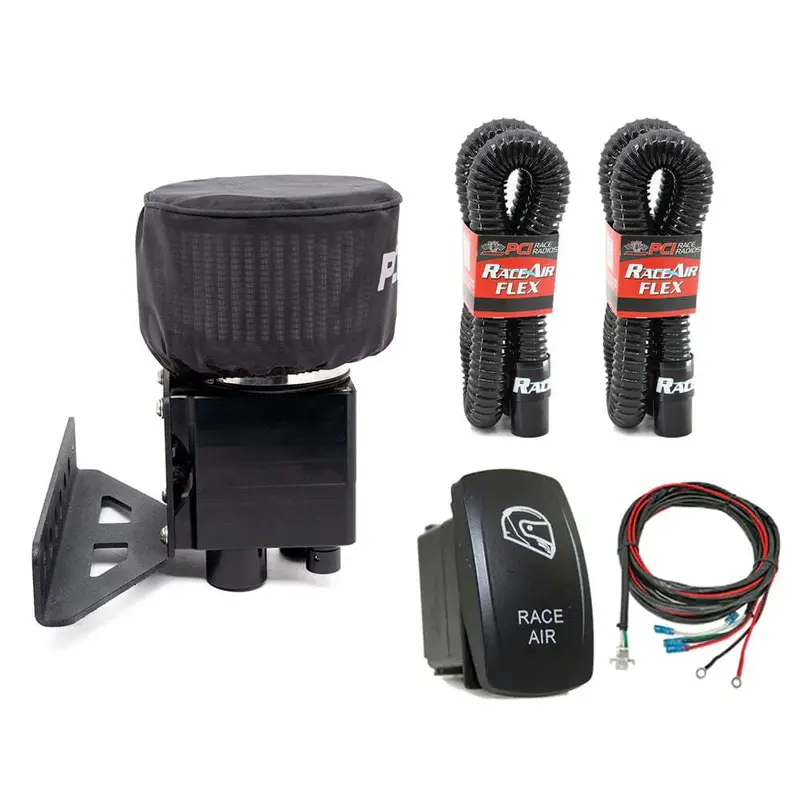

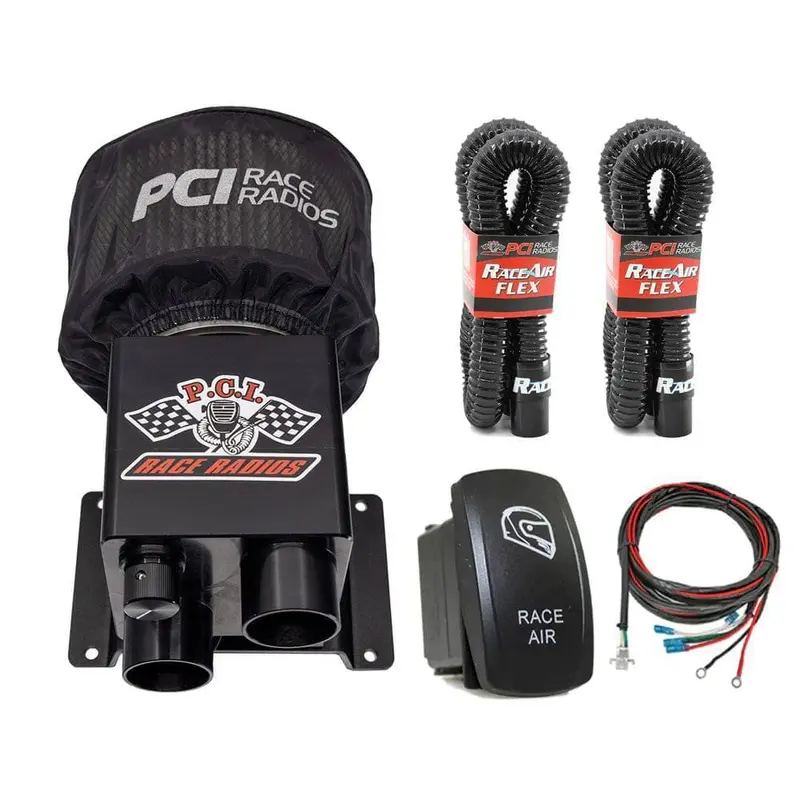

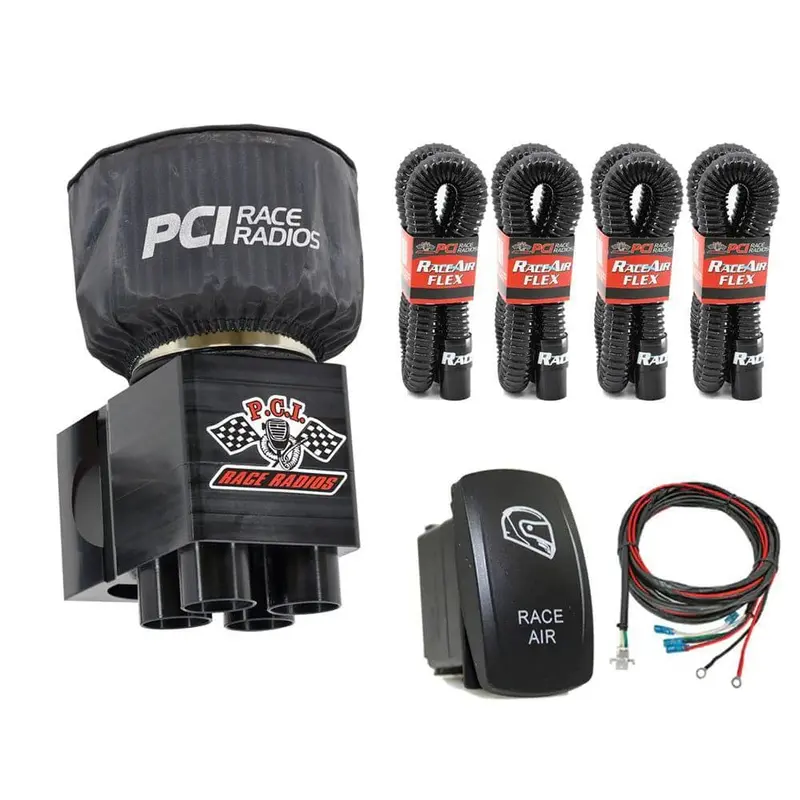

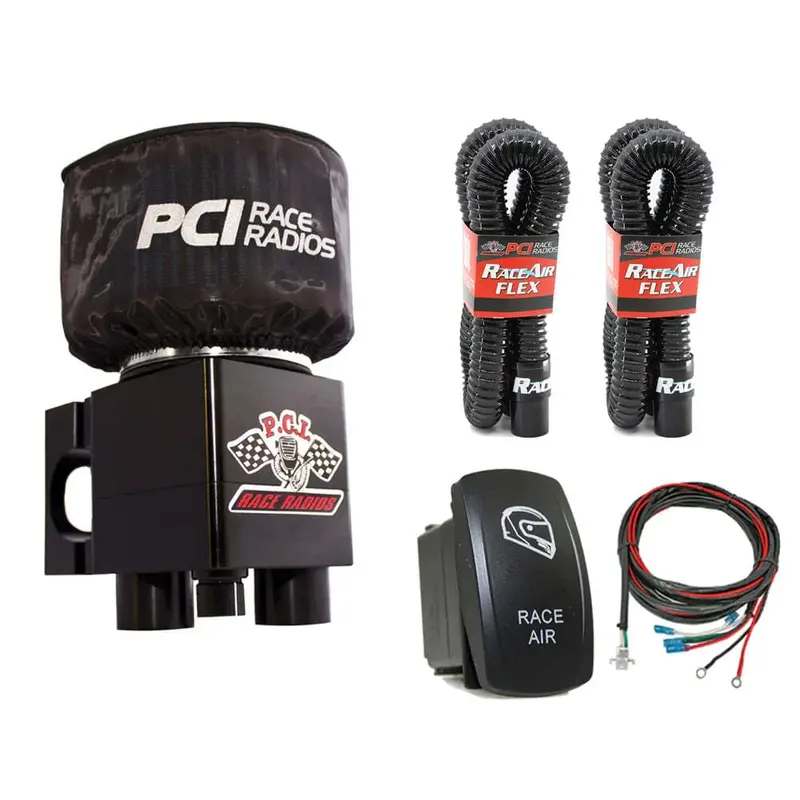

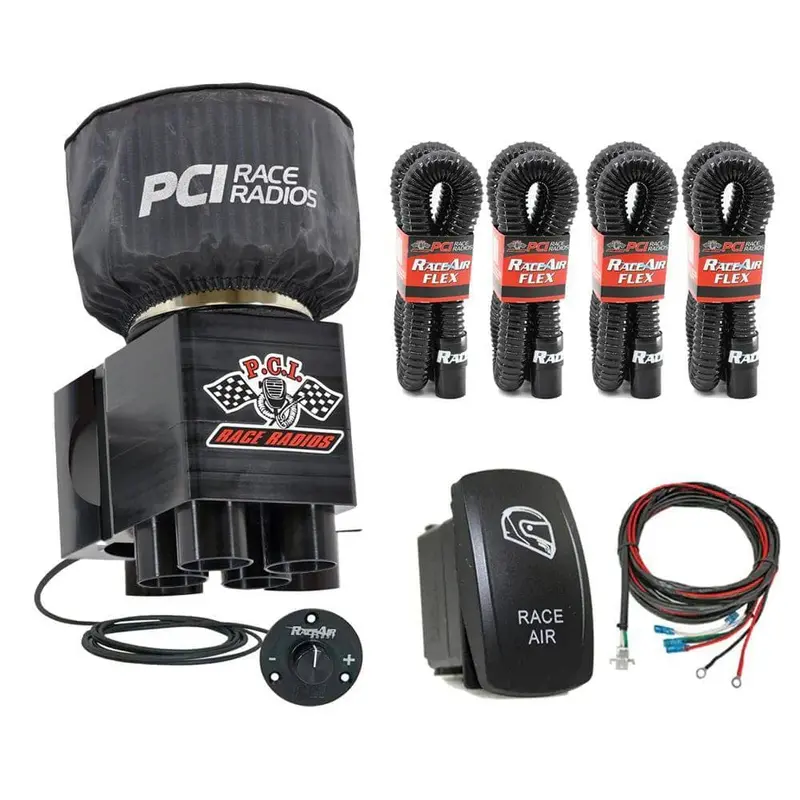

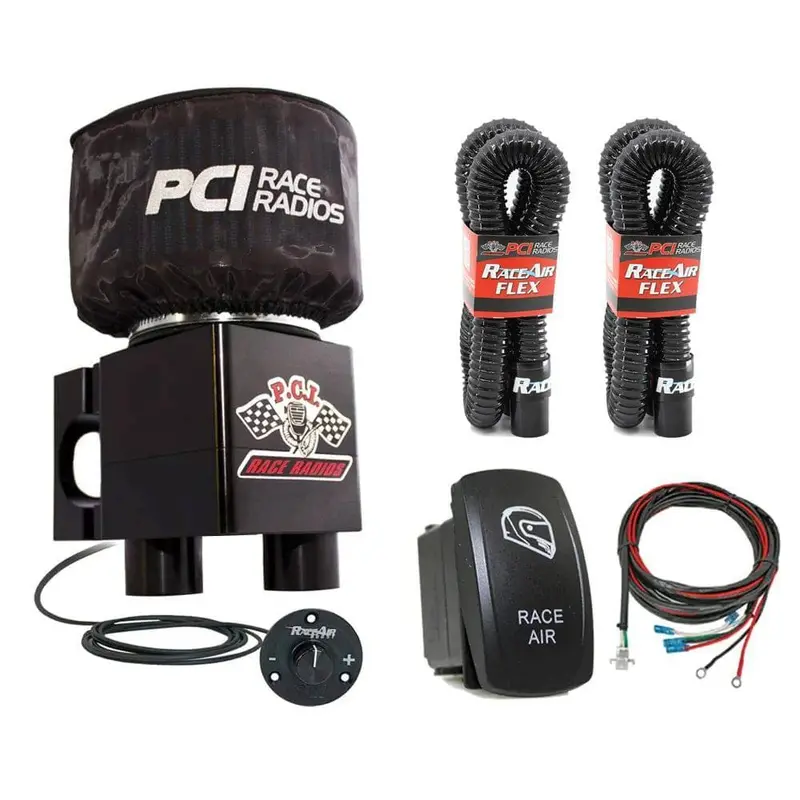

Kit Includes:

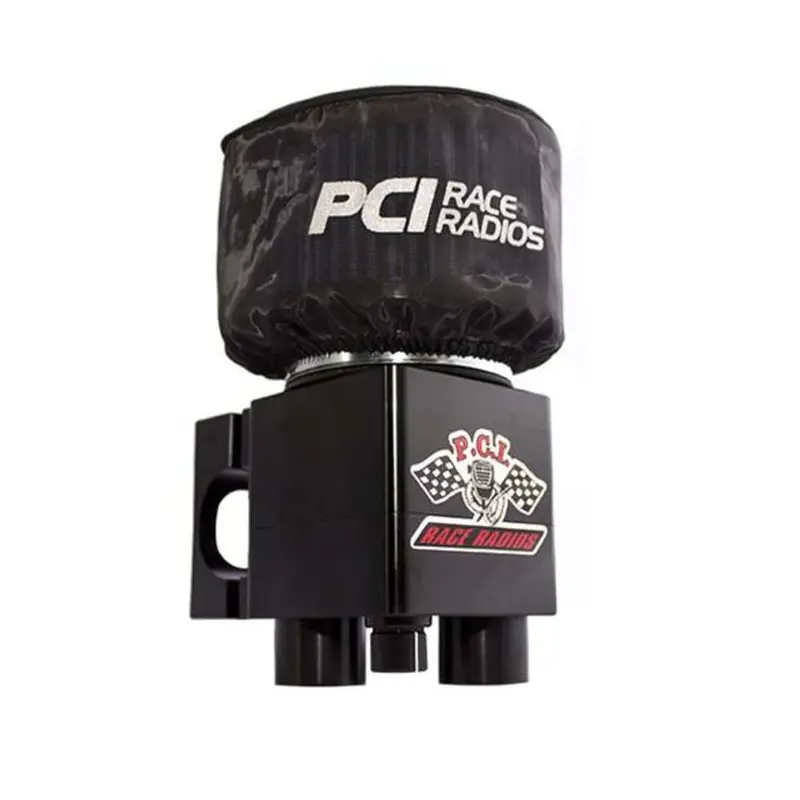

• RaceAir Boost Dual
• Variable Speed Controller either on the unit or on a 10ft remote
• Selectable mounting bracket with hardware
• <1 Micron Filter and Prefilter
• All packages include a 4 ft & 5 ft hose, with expection of RZR Pro R which includes a 3ft and 6 ft hose.
• (2) 10ft Flex Hoses (Quad Only)
• RaceAir Rocker Switch
• RaceAir Wiring Harness

Installation Instructions:

• PCI_Rocker_Switch_Install_2020.pdf
• PCI Maverick R Boost Bracket Installation web
