Description

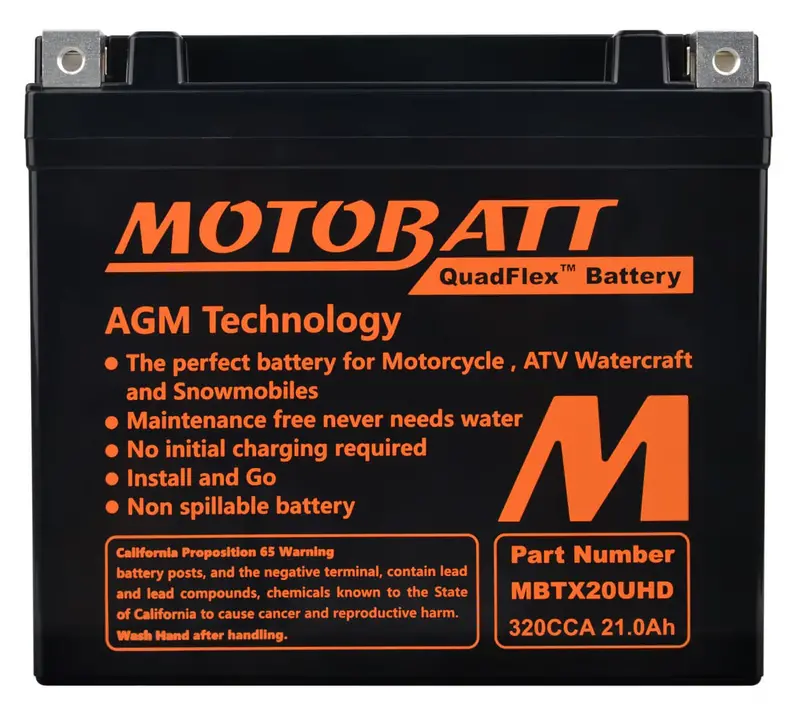

Motobatt 12V AGM Battery – MBTX20UHD
Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.
This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.
Features:
- Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design
- Safe No need to add acid and risk any accidental spillages
- Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages
- Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage
- Ready to go With a voltage of over 12.5V the battery is ready to use right away
- New improved solid mounted terminals with threaded inserts
Replaces:
- Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL
- DEKA ETX16, ETX16L, ETX20, ETX20L
- ODYSSEY PC535, PC625 AGM20L, AGM16L
- WPS 491-1001
Installation Instructions:
- Motobatt spec-MBTX20UHD.pdf
Specifications:
| Battery Type | MBTX20UHD | |
|---|---|---|
| Voltage | 12 | |
| CCA | 335 | |
| MCA | 395A | |
| PHCA | 605A | |
| Capacity (10HR) | C10 – 22.5Ah, C20 – 23.5Ah | |
| Weight | 6.50kg / 14.33Ibs | |
| Dimensions (in / mm) | L: 6.89(175) W: 3.43(87) H: 6.10(155) TW: 3.94(100) TH: 6.89(175) |
|
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2x Blocknut M6 (PART MPN2) | |
| Screws | 2x Screws M6x12 (PART MPS4) | |
| Terminal Caps | 2 Black, 2 Red PART (MPC3) | |
| Spacer | 2, 20mm Bottom (Part# MPBS7), 13mm Back (Part# MPSS) |
|
