Description

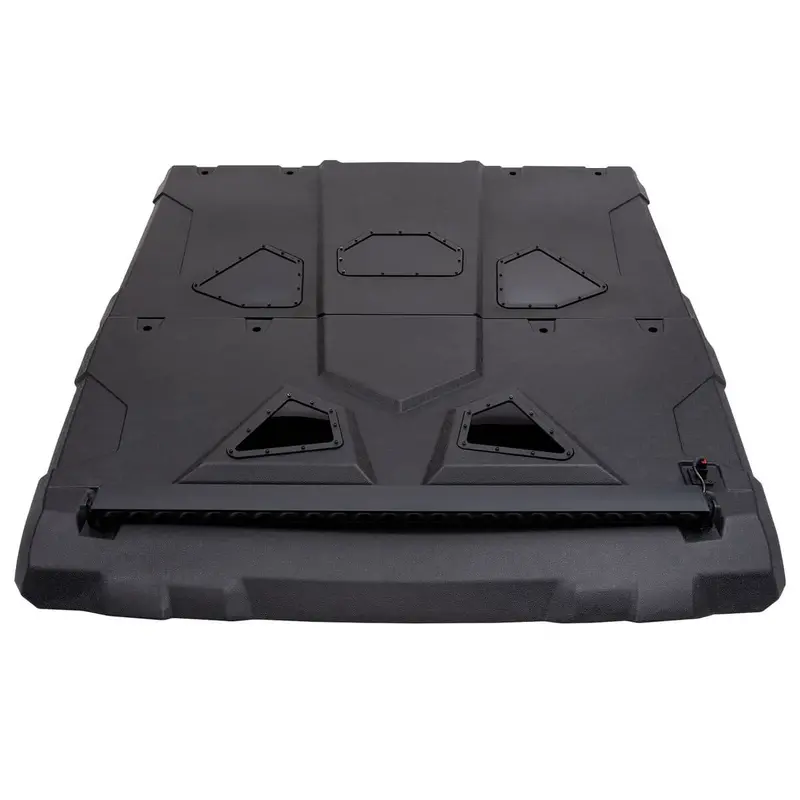

MB Quart Polaris Ranger Crew RG4-S14R 1000 Watt 14 Speaker Audio Roof with 7 Inch LED Source Unit & 45 Inch Light Bar
MB Quart MBQRG4-S14R 1000-watt, 14-speaker audio roof system with a dash-mounted GMR7V1 touchscreen CarPlay source unit. It features twelve powersports-specific 6.5-inch coaxial speakers, two 10-inch powersports-specific subwoofers, two 500-watt 5-channel Class-D amplifiers, and a 45-inch half-optic light bar.
Features:
| Compatible Vehicle Fitment | Polaris RANGER 1000 / XP 1000 2018-Current |
|---|---|
| Marine Grade Protection / IPX Rating | IPX67 |
| Integrated Source Unit | GMR7V1 7-Inch waterproof touchscreen source unit features Apple® CarPlay®, which brings more control and integration with your iPhone. This unit also includes a built-in auxiliary switching system, RGB lighting controller, AM/FM/WB/Bluetooth, dual zone audio control, dual video inputs, one video output, two USB inputs, one aux input, and pre-amp outputs. |
| Integrated Amplifier | Two 500 watt 5 channel full range Class D amplifier has enough power to drive the speakers built into the roof. |
| Integrated Full-Range Drivers | 6.5 inch composite construction midrange for deep and accurate midbass 0.75 inch titanium dome tweeter for crystal clear-high frequencies. |
| Integrated Subwoofer | Application specific high output 10 Inch Subwoofer. |
| Enclosure / Structure | High-impact HDPE composite enclosure |
| Secure Simple Pairing | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Audio Connections | Two USB-A Connections. |
| Video Connections | Includes a built-in 150-degree wide-angle backup camera. |
| Wireless Connections | The Memory Sync feature will remember the most recently connected device and will automatically re-connect to it when powered up with the device in range. Bluetooth range is up to 32 feet. |
| Controls | Unit is adjusted by a master knob, 4 control buttons, and a 7 inch touchscreen panel. |
| Mounting | Mounting system for easy installation on OEM roll cage. |
| Wiring | Plug and Play Pulse power harness with pre-measured wires. No guesswork makes for easy installation. |
| Illumination | Integrated LED RGB lighting. |
| Time and Tools | 1 hour install with basic hand tools. |
Specification:
| Weight | 137 lbs |
|---|---|
| Dimensions | 133 × 16.75 × 78 in |
| Type | All-in-One, UTV Audio Roof |
| Brand | MB Quart |
| Series | Polaris RANGER Tuned, UTV Audio Roofs |
| Category | Powersports |
| Condition | New |
| Color | Black |
| IPX Rating | IPX67 |
| Compatible Vehicles | Polaris RANGER 1000 / XP 1000 2018-Current |
| All-in-One Bluetooth Standards | Version 5 |
| All-in-One Amplifier Power (watts) | 1000 |
| All-in-One Frequency Response | 20Hz-20kHz |
| All-in-One Bluetooth Range (ft) | 32 |
| All-in-One Pre-amp Input | Dual USB Type A |
| Additional Details | Approx Shipping Box 1 of 2: 79.5lbs – 71.0 x 8.75 x 39.0in. Approx Shipping Box 2 of 2: 57.5lbs – 62.0 x 8.0 x 39.0in. |
Installation:
- Ranger 4P Roof Install Manual_Web
