LSK Four-Seat Radius Roll Cage for Polaris RZR Pro R

Description

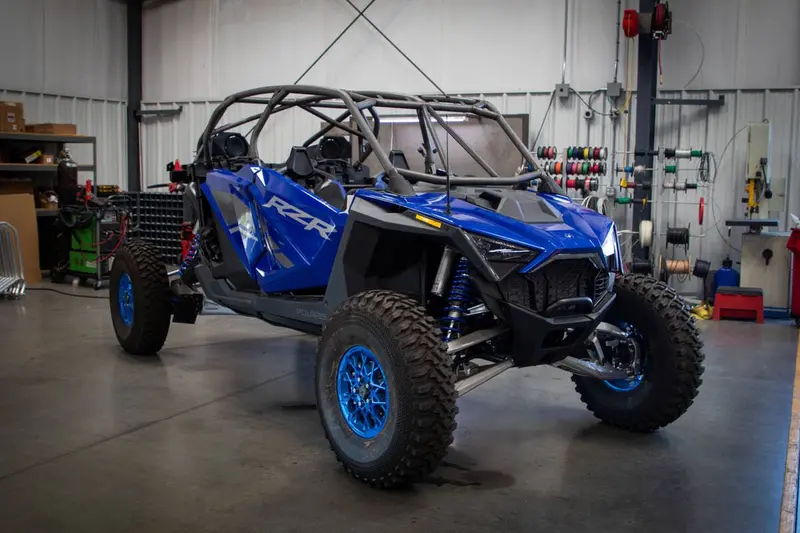

LSK Polaris RZR Pro R 4 Seat Radius Cage

Introducing The Weld It Yourself Cage Kit For The RZR PRO R 4 Seater! This Cage Is Built With .120 Wall DOM Main Tubes And .095″ DOM Support Tubing That Can Be Either MIG or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.

Includes:

• Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
• 1.75″ OD .120 Wall DOM Tubing For Main Structure
• 1.75″ OD & 1.50″ OD .095″ DOM For All Other Support Tubes
• Cage Bungs & Hardware To Mount In Factory Cage Mounting Locations


Dimensions: 74 × 24 × 8 in

Requires:

• Welding – This Kit Can Be Welded Together Once Configured On The Vehicle

Upgrades:

• Aluminum Roof – .06 Thick 2 Piece Roof W/ Small Visor Bend And Bead Rolled Joint – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware
• Windshield Kit – Complete Bolt On Windshield Kit With .09″ Powdercoated Black Aluminum Shroud With DOT Glass And Adjustable Air Vents

Notes:

• Must Use A Floor Jack Under Center Of Vehicle During Installation To “level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
