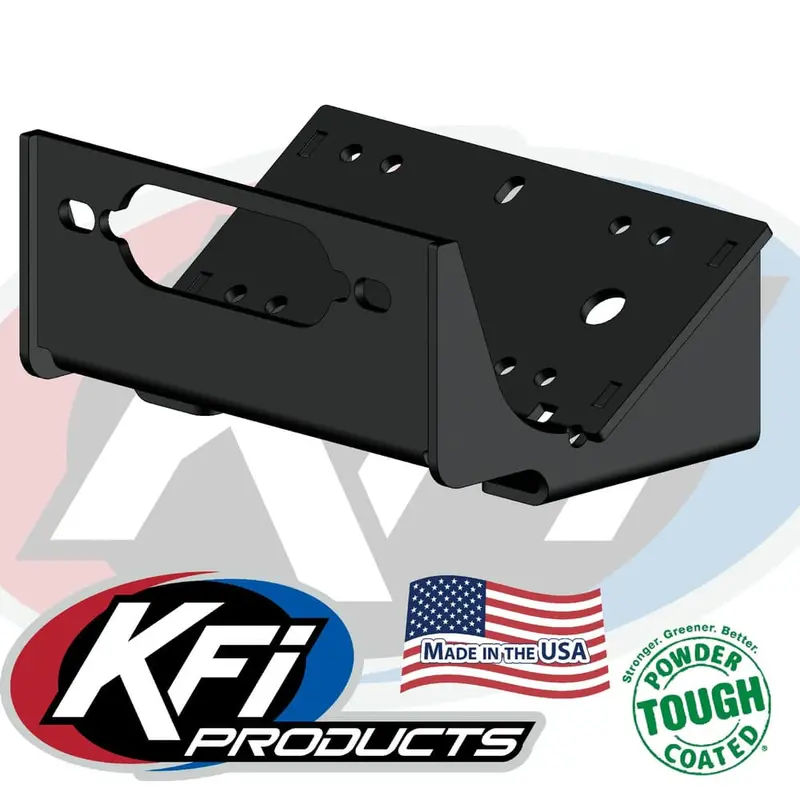

KFI Winch Mount Kit for 2014–2025 Kawasaki TERYX 800

Description

KFI ’14-’25 Kawasaki Teryx 800 Winch Mount

Features:

• 100% made in USA.
• Plate constructed of 3/16” steel.
• Fairlead bracket constructed of 1/4” steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included. See Note below

Specifications:

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2
• KFI: U45w-R2 / SE45w-R2
  • 2012-13 Teryx4 750
  • 2020-25 Teryx 800
  • 2020-25 Teryx4 800
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x / AS-50wx
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lb (Will NOT work with Vantage 4000 due to motor lead orientation)
• WARN: ProVantage 2500-4500lbs
  • ProVantage 3500 and 4500 will require lead rotation.
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• BADLAND: 2-Hole Winches (Click Here for Details)
• BADLAND: Standard Winches (Click Here for Details)
• BADLAND: WIDE Winches (Click Here for Details)
• BADLAND: APEX 5500 (Long Drum)
• CHAMPION: 2-Hole Winches (Click Here for Details)
• CHAMPION: ATV 4-Hole Winches (Click Here for Details)
• CHAMPION: UTV 4-Hole Winches (Click Here for Details)
• CHAMPION: WIDE Winches (Click Here for Details)
  • 2012-13 Teryx4 750
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00″ x 4.875″ bolt pattern mount-up
  • All with 3.00″ x 6.600″ bolt pattern mount-up
• Traveller: 1078311 (1078311 Will NOT work on 2014-2015 models)
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
  • 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
  • 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
• QUADBOSS: RP25 / RP35

Installation Instructions:

• M101945_small.pdf

Fitment:

Kawasaki	Year
Kawasaki Teryx (800)	2014-2025
Kawasaki Teryx4 (800)	2014-2025
Kawasaki Teryx4 750	2012-2013
