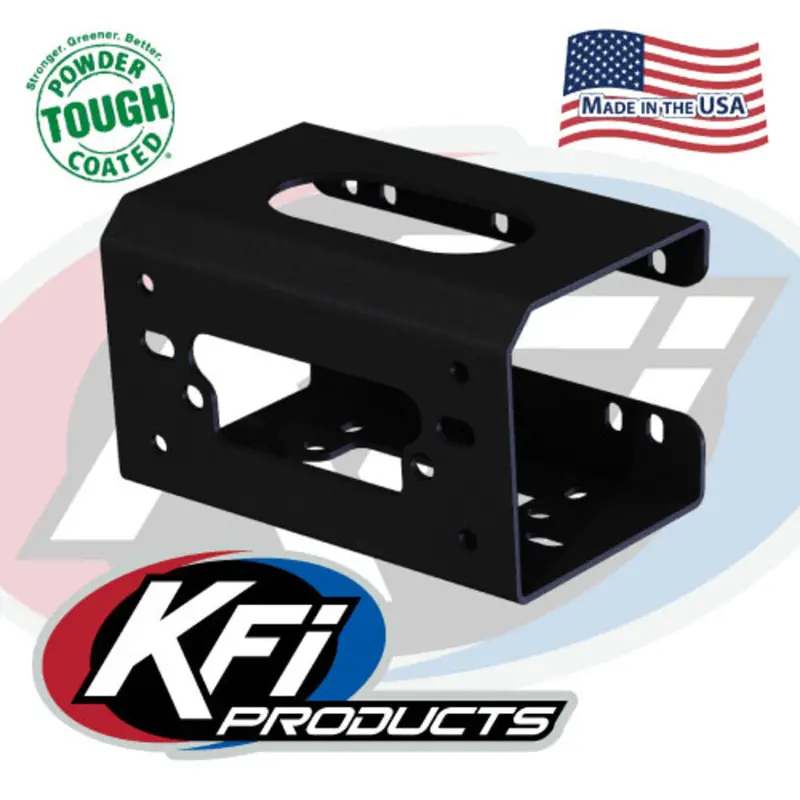

KFI Winch Mount for 2013–2019 Arctic Cat Wildcat 1000 & Wildcat 4 1000

Description

KFI ’13-’19 Arctic Cat Wildcat 1000 / 4 1000 Winch Mount

Features:

• 100% Made In USA.
• Comes with #101000 Modular Grill and #101015 Modular Winch Mount.
• Able to be mount to the front face and also the Top Surface as an option.
• Replaces stock plastic grill.
• Constructed of 3/16″ steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Easy to install.
• Complete installation instructions included.
• Roller fairlead and winch not included

Specifications:

Designed to work with the following winches:

• KFI: ST17 / S2000 / A2500-R2 / A3000 / U4500 / U4500w / SE25 / SE35 / SE45 / SE45w
• KFI: AS-25 / AS-35 / AM-25 / AM-35 / AS-50x / AS-50wx
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: Vantage 4000lbs / Provantage 4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION: 2-Hole Winches
• CHAMPION: Standard Winches
• CHAMPION : WIDE Winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00″ x 4.875″ bolt pattern mount-up.
  • All with 3.00″ x 6.600″ bolt pattern mount-up.
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
  • 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
  • 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
• QUADBOSS: RP25 / RP35

Kit Includes:



• Modular Winch Mount Bracket #101015 (INCLUDED)



• Optional Modular Grill #101000 (Needed to Attach Winch Mount)



• Optional Bumper #101010



• Mounted with all Options Winch Mount Kit #101030 and Optional Bumper #101010

Installation Instructions:

• Winch Mount

Note:

• Will Not work with X or Limited Model without removing the front bumper

Fitment:

• 2012-2019 Wildcat 1000
• 2013-2019 Wildcat 4 1000
