Description

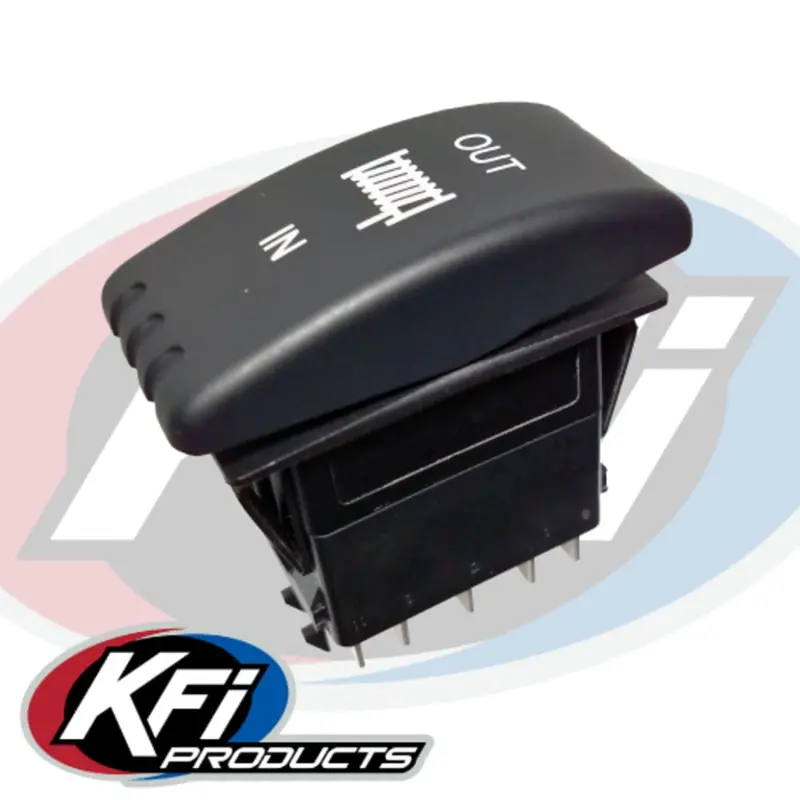

KFI UTV Dash Rocker Switch
Features:
- This kit includes the replacement Rocker Switch only
- Requires #UTV-DRS-K to control winch
- Blue LED illuminated when your key is turned on to allow you to see at night
- Circuit Type (ON)-OFF-(ON)
- Double pole Switch. This mean two contact points instead of just one for better repeatability operation.
- Requires Mounting hole 0.830” x 1.450” (standard on most UTV’s)
- Works with Panel Thickness ranging from .030” to .250” thick
- Max Current Rating: 20A 12VDC and 15A 24VDC
- Silver Plated Terminals
- Requires Standard ATV Winch Contactor to control Winch
- See below Wiring Schematic
Kit Includes:
- Winch Rocker Switch Only
Installation Instructions:
- MUTV-DRS_small.pdf
