KC HiLiTES Daylighter 6-Inch LED Light Bar with Gravity G6 Dual-Pack System

Description

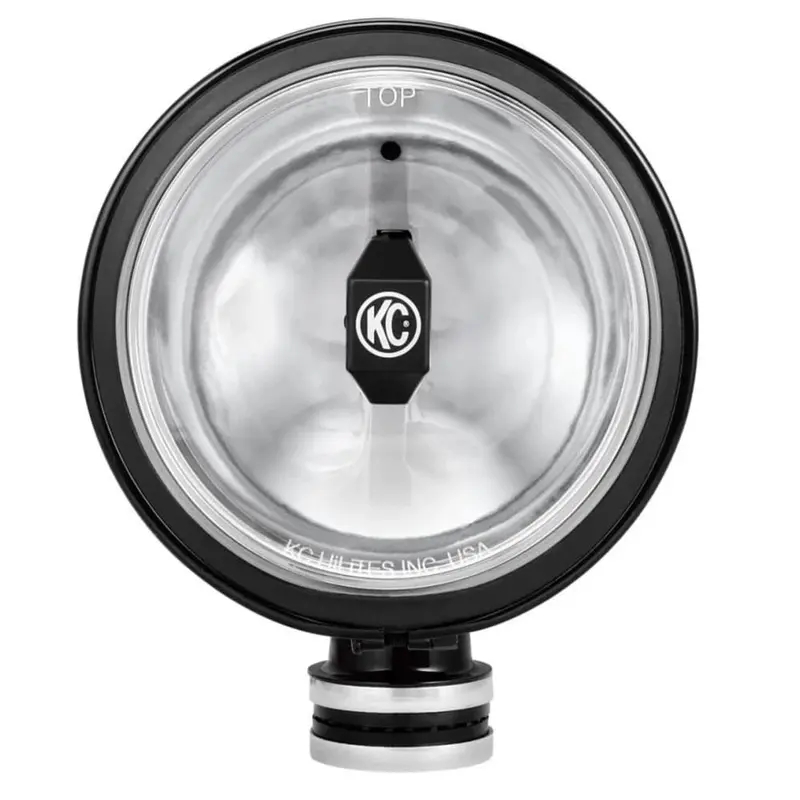

KC HiLiTES 6″ Daylighter with Gravity LED G6 Pair Pack System

KC’s 6″ Gravity LED Daylighter feature 20w LED bulbs in a SAE legal driving pattern. Black steel housing and polycarbonate lens with FLEXible base for easy aiming. Pair includes complete wiring harness, switches, and ABS stone guards.

Features:

• Race Proven Strength & Durability: The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
• Adjustable Mounting for Accuracy and Precision: Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.
• Gravity GRD Extreme Output and Efficiency: Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
• Available Beam Pattern and Advantages: Driving Beam – SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.
• 2 x 20W Gravity® LED G6 optical inserts
• Black Powder Coated Steel housing
• Hard Coated Polycarbonate Lens
• Driving Beam Pattern

Specifications:

Per Light:

• LED Source: CREE XPL HD LED
• Amp Draw: 1.63A
• Voltage: 9V-32V

Weight	8.000000
Compliance DOT/SAE/ECE	SAE J581, ECE R112 (Driving)
Wattage Per Light	20W
Total Wattage	40W
Amp Draw Per Light	3.3 a
Voltage	9V-32V
Lumens Per Light	2,300 lm
Lux Per Light	1,310 lx
Candela Per Light	131,000 cd
Light Temp	5000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Driving
Beam Distance	724 m
Light Technology	LED
Mount Location	A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
Size of Products	6″
Material	Stainless Steel
Product Finish	Black
Included Components	2 x Gravity LED™ Daylighter(Black Steel) SAE/ECE Driving Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6″ Protective KC Daylighter light Guards, Mounting Hardware
Color	Black
Product Dimensions	W: 6.22 ” x H: 8.42 ” x D: 5.38 “
UPC	084709006532
IP Rating	IP67

Kit Includes:

• 20W 6″ Gravity® LED Daylighter lights
• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• Protective KC Daylighter light Guards
• 30A Illuminated Switch w/ Switch Panel

Installation Instructions:

• Installation Guide – KC 6308 Wiring Harness
