Description

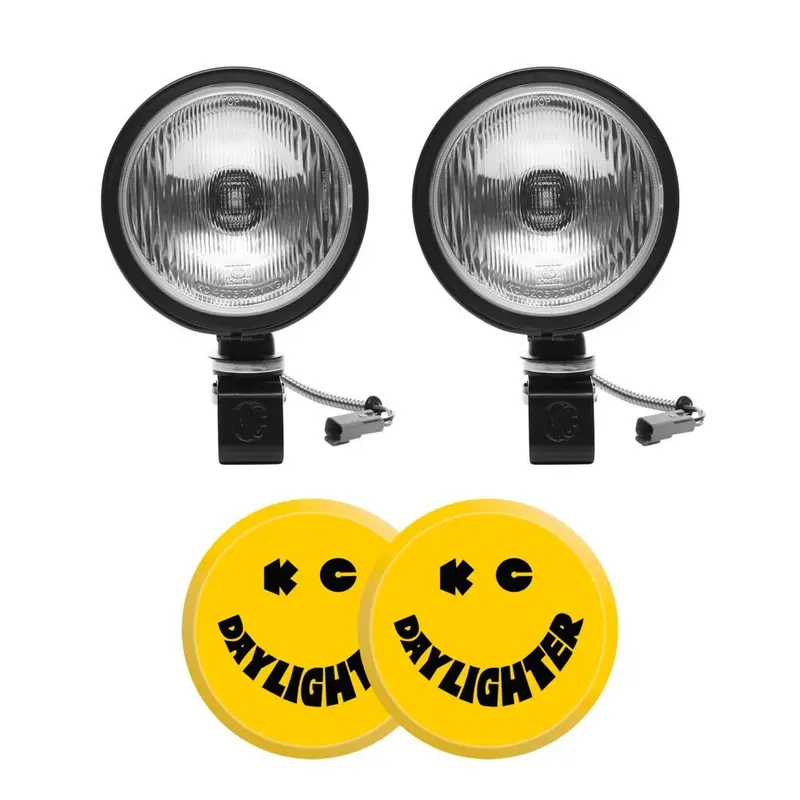

KC HiLiTES 6″ Halogen Daylighter Pair Pack System
KC’s Classic 6″ Daylighter Halogen feature powerful 100W Halogen Bulbs in spread pattern, shock-mounted steel black housing, parabolic reflectors and glass lens. System includes complete relay wiring harness, switch kit, and light covers.
Performance Halogen and Precision Optics: 6″ Daylighter Halogens deliver up to 1,717 lx 10m of light output with a beam distance of 829 meters in a spread beam pattern. Tempered glass lens, precision optical reflectors with bright H3 Halogen bulbs combine to improve range and clarity.
Available Beam Pattern and Advantages: Different beam patterns offer specific lighting benefits to meet your lighting needs. Spread Beam Provides a balanced wider beam of light that increases peripheral visibility, as well improved forward facing light for an increased range of visibility.
Adjustable Mounting for Accuracy and Precision: Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
Race Proven Strength & Durability: The race-proven steel housing combined with over 40 years of testing to provide a strong and durable combination that will withstand the most severe conditions.
Features:
- 100W Halogen Bulbs
- Black Steel Housing
- Tempered Glass Lens
- Spread Beam Patter
Light Performance (Per Light)
- Raw Lumens 2,452 lm
- Lux 10 Meters Spread- 1,717 lx
- Candela Spread 171,675 cd
- Beam Distance (Meters) Spread- 829m
Specifications:
| Wattage | 100W per light |
|---|---|
| Amp Draw | 8.3A |
| Voltage | 9V-32V |
| IP Rating | IP68 |
| Product Dimensions | W – 6.22″ x H – 8.42″ x D – 5.38″ |
| Weight | 7.000000 |
| Wattage Per Light | 100W |
| Total Wattage | 200W |
| Amp Draw Per Light | 16.67 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,452 lm |
| Lux Per Light | 1,717 lx |
| Candela Per Light | 171,675 cd |
| Light Temp | 4000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Spread |
| Beam Distance | 829 |
| Light Technology | Halogen |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Size of Products | 6″ |
| Material | Stainless Steel |
| Product Finish | Black |
| Included Components | 2 x 6″ (Black) Daylighter Halogen Spread Beam lights,Wiring Harness with LED Light Switch, 2 x Protective Light Covers |
| Color | Black |
| Product Dimensions | W: 6.22 ” x H: 8.42 ” x D: 5.38 “ |
| UPC | 084709002343 |
| IP Rating | IP68 |
Kit Includes:
- (2) 100W 6″ Daylighter Halogen lights
- Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
- (2) Protective Light Covers
Installation Instructions:
- Daylighter Pair Pack System
