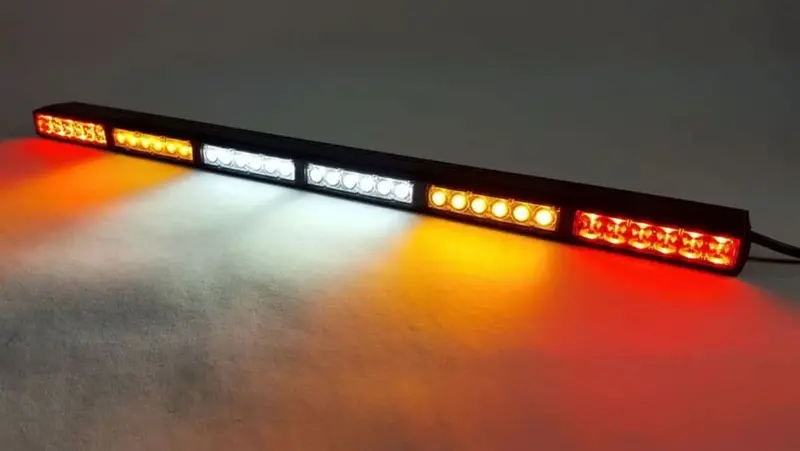

KC HiLiTES 28″ Multi Function Rear Facing Chase LED Light Bar
This 28″ Rear Facing LED Chase Bar features integrated tail/brake lights, amber dust lights with strobe capability, along with white floodlights for added visibility, dramatically improving rider safety on the trail or race course. 28″ Multi-function rear facing LED tail light bar has been exclusively configured for use on UTVs, Jeeps, Truck racks, Race trucks or even custom applications. Enhanced features include red tail/brake light with blinker capability, amber dust lights with solid or strobe capability and white flood/work lights for area lighting.
The use of a rear facing LED tail light bar dramatically improves rider safety on the trail or off-roading through desert terrains for recreational and competitive race course use. This rear facing LED tail light bar also is equipped with standard functions to comply with street legal standards, perfect for use on your Jeep, Car, Truck and UTV (If permitted for street use). Featuring a full length adjustable bolt slot located on rear section of light bar or threaded end mounts for use with bolted or welded on vehicle mounting tabs.
Features:
- 28″ Rear Facing LED Light Bar
- Multi Function Integration and Design:
- Red LED Tail & Brake Lights with Blinker Capability
- Amber LED Dust Lights with Strobe Capability
- White LED FloodLights
- Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and
- Durability
- Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
- 40° Spread and 180° Flood Beam Optics
Specifications:
| LED Source | 4W Cree LED |
|---|---|
| Raw Lumens | 4,500 lm |
| LED Color | Red, Amber, and Clear LEDs |
| Amp Draw | 5.0A (max draw) |
| Voltage | 12V DC |
| Certifications | SAE J595, CT13, SAE J1119 |
| Product Dimensions | H – 1.22″ x L – 28.14″ x W- 2.25″ |
| Weight | 4.100000 |
| Wattage Per Light | 60W |
| Total Wattage | 60W |
| Amp Draw Per Light | 5.0a |
| Total Amp Draw | 5.0a |
| Voltage | 12 V |
| Lumens Per Light | 4,500 lm |
| Total Lumens | 4,500 lm |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Combo |
| Light Technology | LED |
| Package Options | Includes Wiring |
| Mount Location | Bumper, Overhead, Rear / Back-up |
| Size of Products | 28″ |
| Product Finish | Black |
| Color | Black |
| UPC | 084709098018 |
Kit Includes:
- (1) 28″ Rear Facing LED Light Bar with Wire Lead
Note:
- This bar is not compatible with aftermarket turn signals
Installation Instructions:
- KC3265EI REV3 – 9801 9802 CHASE LIGHT V2_09162022.pdf
