DS18 INFINITE AGM Power Cell – 150Ah Capacity, 12V Robust Marine & RV Battery

Description

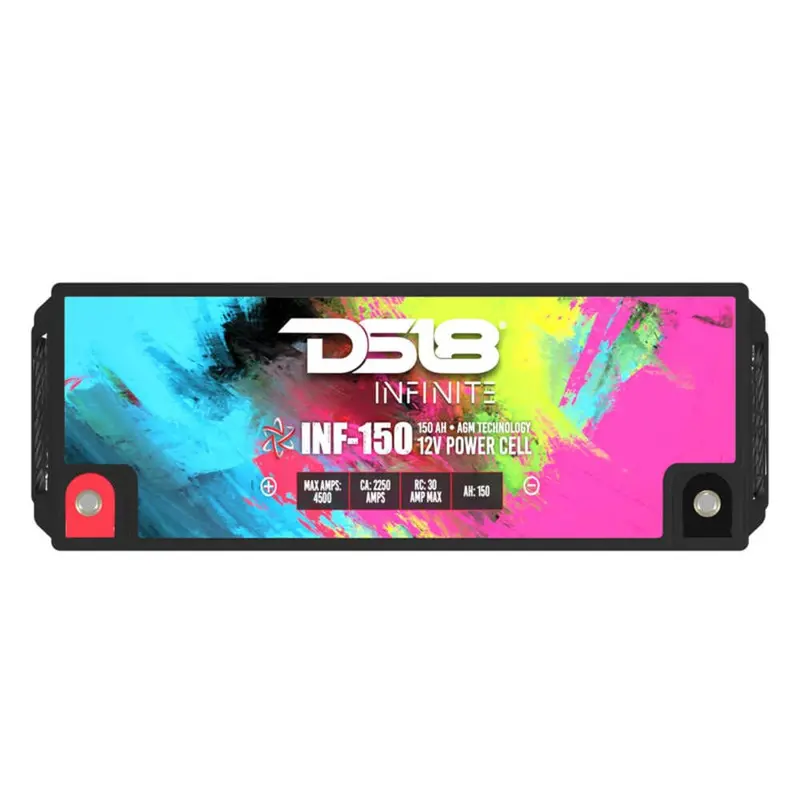

DS18 Infinite 150 AH AGM Power Cell Battery

The INF-150AH AGM power-cell battery is a testament to DS18’s unwavering commitment to excellence. Designed to withstand the harshest conditions, this battery will power your audio system to new heights.

The INF-150AH delivers over 2250-amps of starting power, 1000 Cold Cranking Amps, 4500W of Maximum Discharge Current, and quick recharge capabilities. With a float charging voltage range of 13.5 to 13.8 VDC per unit on average at 77 degrees Fahrenheit, the INF-150AH ensures that your battery remains consistently charged during extended periods of use, and extends this battery’s lifespan.

AGM (Absorbed Glass Mat) technology, the cornerstone of our INF-150AH, has been tried, tested, and trusted by enthusiasts worldwide. Its proven track record as the most cost-effective solution for high charging demands from any 12-volt source sets it apart from the competition. Embrace the power of the future and experience the pinnacle of performance.

AGM (Absorbed Glass Mat) technology, the cornerstone of our INF-150AH, has been tried, tested, and trusted by enthusiasts worldwide. Its proven track record as the most cost-effective solution for high charging demands from any 12-volt source sets it apart from the competition. Embrace the power of the future and experience the pinnacle of performance.

Features:

• 12 Volt AGM Battery
• 150 AMP Hours
• Thread Lead Alloy Recessed / M8 Bolt
• Maintenance Free
• 4000 Power Watts
• Made in Vietnam

Specifications:

• Battery Type: AGM

• Nominal Voltage: 12.8 V

• Capacity: 150Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F)

• Maximum Discharge Current: 4500 Amps

• Cranking Amps (CA): 2250 Amps

• Cold Cranking Amps (CCA): 1080 Amps

Specs:

• Watts (RMS): 4000W

• Internal Resistance: Approx. 4 mΩ

• Float Charging Voltage: 13.5 to 13.8 Vdc / unit average at 25°C (77°F)

• Recommended Charging Current: 30 Amps

• Nominal Operating Temperature Range: 25°C +/- 3° (77°F +/- 5°)

• Bolt / Terminal Type: Theard Lead Alloy Recessed / M8 Bolt

• Battery Group: N/A

Measurement:

• Overall Length: 18.97″ / 482mm

• Overall Width: 6.69″ / 171mm

• Overall Height: 9.44″ / 240mm

• Overall Height (Without Terminals): 9.44″ / 240mm

• Weight: 88 lbs / 40 kg
