Denali Pro UTV Snow Plow for Kawasaki Mule Vehicles

Description

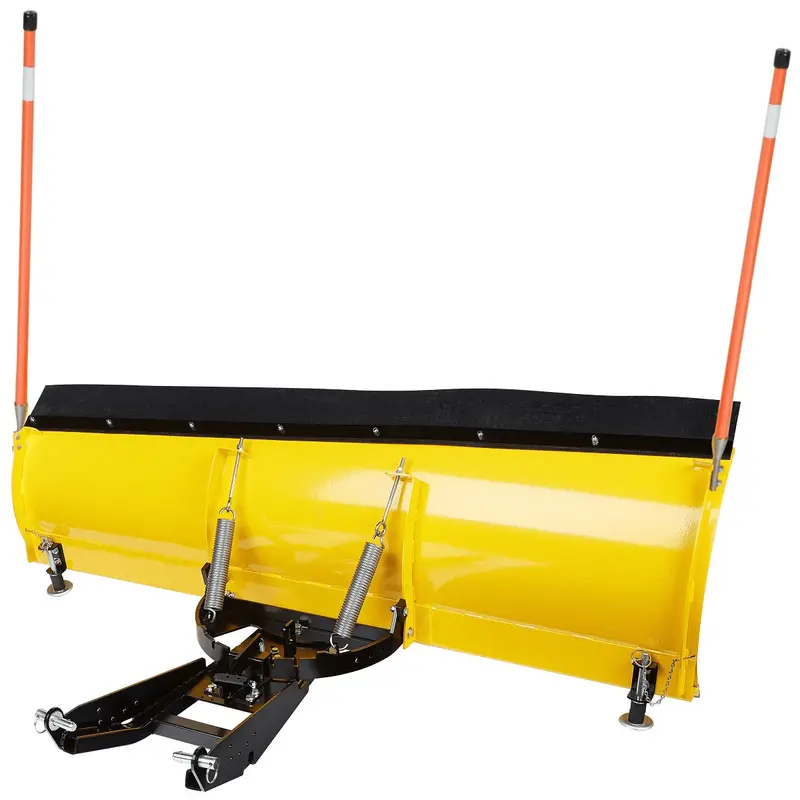

Denali Pro UTV Snow Plow – Kawasaki Mule

Snow doesn’t stand a chance against DENALI Pro UTV Snow Plows. Designed in the USA, these heavy-duty, County-style 12-gauge steel UTV plow blades make quick work of powder and wet snow. The center-mounted design disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. The plow kit includes a reversible wear bar, rubber flap, and skid feet to protect the blade from wear and tear. Dual-layer powder & Polyester paint coat boosts corrosion protection and UV resistance, keeping you plowing for seasons to come.

Please Note: All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, VIPER Max, or VIPER Midnight winch with an automatic brake.

Kit Contents:

• UTV Snow Plow Blade – County / DOT Style
• UTV Pushtubes
• One (1) Reversible Wearbar
• Rubber Flap
• Rubber Flap Stabilizer Bar
• Skid Feet
• Plow Markers
• Plow Mount (when added to order)
• Installation Hardware and Instructions

Blade Features:

• County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
• Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
• Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance, and durability
• High strength, high yield 3/16 thick Grade 50 steel wear bar
• Angled Blade: 16 on the low side; 23 on the high side
• Rubber flap & stabilizer bar with rubber flap
• Height AND angle adjustable steel skid feet
• 3 Year Warranty
• Designed in the USA

Pushtube Features:

• Impact Resistant Reinforced Pivot Assembly – 2 additional support bars for maximum durability & strength
• Turn system allows for easy positioning of the blade in 5 different angles – 0, 12.5°, 25°
• Simple detachment system with the pull of a pin
• Structural tube steel cross bar for added lateral rigidity
• Quick-release pins included
• 13.5 inches center to center for plow mount tabs
• Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

Pushtube Lift Kits:

• Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
• Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)

Mount:

MA11732

2009-2023 Kawasaki Mule 4010
2009-2014 Kawasaki Mule 4010 Diesel

MA11739

2015-2022 Mule 820 PRO FX
2015-2022 Mule 820 PRO FXT
2018-2022 Mule 820 PRO_FXR
2016-2022 Mule 1000 PRO DX
2016-2022 Mule 1000 PRO DXT

MA11770

2-inch Receiver Plow Mount
All machines with front 2-inch receiver already installed
