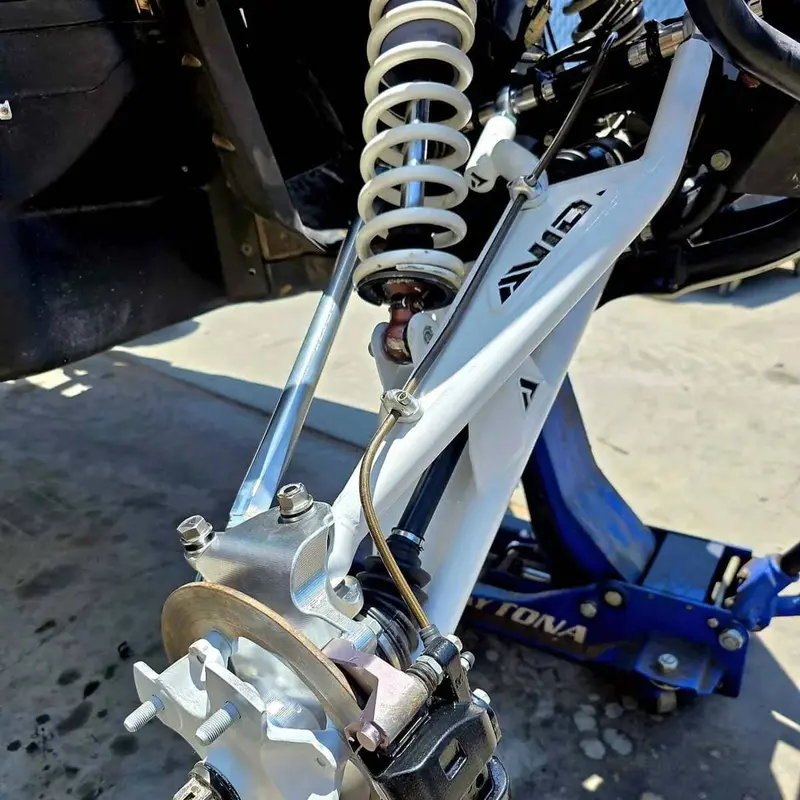

AVID Racing Yamaha YXZ1000R 72″ Front Mid Travel Race Kit
The ultimate race-bred evolution of our proven MTR72 kit. Engineered for aggressive driving, this Race Geometry Edition delivers spot-on KPI, caster, and making all pivots true double shear, while maintaining a true 72” stance. Handcrafted from 4130 Chromoly and TIG-welded, this system eliminates factory weak points and maximizes strength where it matters most.
Features:
- Race-optimized 72” stance – 4” wider per side with corrected geometry for ultimate stability.
- 4130 Chromoly construction – lightweight, fully TIG-welded durability tested in race conditions.
- 7/8” “stem cup” pivots – signature AVID design for maximum strength.
- 3/4” heim joints – precise camber/caster adjustment with race-ready safety.
- Relocated front shocks – positioned at the correct angle for smoother travel.
- 7/8” uniball bearings – eliminates weak factory ball joints with double-shear race strength.
- 7075-T6 billet uprights – unmatched rigidity and impact resistance.
- 100% bolt-on install – no cutting, welding, or fabrication required
Specifications:
- 3.4” ground clearance at full bump (with stock shocks & 32” tires)
- 23.6” ground clearance at full droop
- 20.2” total wheel travel
- Optional 12” shock tower available
Kit Includes:
- Complete front upper & lower control arms (left and right)
- 7075 billet race spindles
- 7075 billet tie-rod kit
- Extended brake lines
- All uniballs, rod ends, bushings, and misalignment spacers
- Complete titanium hardware kit
